Below-grade infrastructure specifically targets urban floodwater like a massive, natural funnel. Subway entrances and sloped underground parking lots rapidly collect overwhelming runoff volumes. In these scenarios, mere minutes determine the difference between a brief temporary closure and catastrophic structural damage. Traditional mitigation methods fail to meet modern operational requirements. Heavy sandbag setups and permanent concrete berms demand intense manual labor and long setup times. Furthermore, these older approaches require immense storage spaces and rarely adapt to flash floods.
Transitioning to a modular defense system solves these core challenges. Facility managers must understand the specific hydrostatic mechanics governing modern protection equipment. We will explore how L-shaped barriers harness water weight, analyze vital storage logistics, and evaluate site-specific deployment constraints. You will learn exactly how to secure critical access points before disaster strikes.
Hydrostatic Sealing: Modern modular flood defense systems utilize the weight of the water itself to secure the barrier to the ground, eliminating the need for heavy, permanent fixtures.
Deployment Speed: A standardized subway entrance flood barrier can be deployed by a two-person team in under 10 minutes.
Scalability: Interlocking mechanisms allow systems to scale from a narrow stairwell to wide-span parking lot flood protection without compromising the watertight seal.
Implementation Reality: Success depends as much on ground surface integrity and staff training as it does on the barrier's material specifications.
Below-grade spaces trap runoff rapidly. Sloped driveways act as massive funnels during intense storms. Stairwells exponentially increase water velocity. They push massive volumes downward without restriction. This drastically reduces your available reaction time. The funnel effect concentrates previously shallow surface runoff into a high-pressure torrent. It leaves maintenance teams scrambling to secure vulnerable access points.
Beyond physical water damage, facility managers face severe operational downtime. Flooded transit hubs shut down completely. Escalators and elevator shafts fill rapidly. Electrical systems often require total replacement after submergence. You also face severe liability exposures. Commercial structures suffer immense reputational damage after a major flood event. Facility closures interrupt daily routines and frustrate tenants.
Urban flash floods offer minimal warning. Facility managers typically possess less than 60 minutes of actionable warning. This brief window frames your core operational challenge. You need rapid deployment above all else. Waiting for heavy machinery or large volunteer crews practically guarantees failure. Success relies on executing a defense protocol swiftly.
Infrastructure Type | Primary Vulnerability | Reaction Window |
|---|---|---|
Subway Entrances | Stairwell velocity acceleration | < 30 minutes |
Underground Parking | Wide-span sloped driveways | 45 - 60 minutes |
Utility Basements | Below-grade ventilation grates | < 45 minutes |
Historical mitigation methods fall short today. Sandbags carry heavy labor requirements. They demand slow, exhaustive manual deployment. Contamination risks run high when floodwaters recede. Sewage and chemical runoff soak into the burlap. Furthermore, sandbags suffer a single-use lifespan. You throw them away afterward. They rarely form a perfect seal against concrete surfaces.
Permanent concrete walls present different hurdles. Regulatory bodies often reject large concrete berms. They restrict accessibility around public transit points. Commercial access gates cannot accommodate permanent walls. You need temporary solutions. Rigid infrastructure conflicts with daily pedestrian flow. It creates severe trip hazards during dry weather.

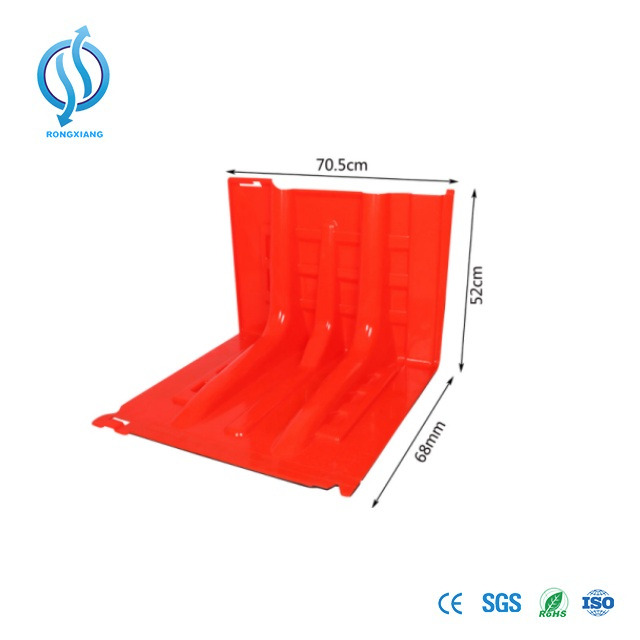

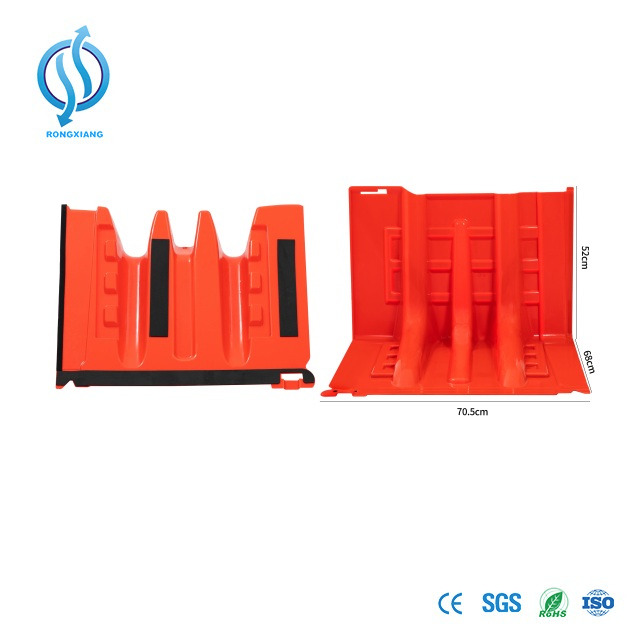

A modern water blocking plate relies on distinct L-shape mechanics. Directional hydrostatic pressure works for you. Fast-moving water pushes down on the flat baseplate. This downward force naturally compresses bottom rubber gaskets. It creates an increasingly tight seal. As water levels rise, the system anchors itself firmly against the ground. The threat actually powers the defense mechanism. It eliminates the need to bolt heavy steel panels into your pavement.
Rapid response depends entirely on equipment ergonomics. Standard maintenance staff must assemble the units easily. Manufacturers typically construct units from ABS plastic or aluminum. A high-quality subway entrance flood barrier weighs little per piece. Two people can manage it rapidly. Lightweight materials prevent staff injuries. They eliminate the need for forklifts.
Storage logistics matter immensely. Facility spaces lack room for bulky gear. Assess stackability ratios before acquiring equipment. A 10-foot span of barrier should collapse tightly. Ideally, it fits inside standard utility closets nearby. Close proximity guarantees faster setup. Transporting equipment across massive transit stations wastes precious minutes. Compact profiles ensure gear stays hidden yet accessible.
Consider sealing integrity on diverse surfaces. Bottom and side friction gaskets manage leaks. Never assume your ground is perfectly flat. Concrete and tile display minor surface variations. Effective units utilize thick neoprene components. They compress into minor dips safely. Stiff plastics fail to bridge these tiny gaps. You must evaluate the gasket durometer rating. Softer rubber conforms better to urban hardscapes.
Ignoring storage proximity and keeping panels miles away from the deployment zone.
Failing to test equipment weight capabilities with actual overnight maintenance staff.
Assuming basic pavement requires zero surface preparation.
Driveways require massive spans of defense. Securing 50 feet across a garage demands robust engineering. Interlocking joints secure continuous walls. Sturdy locking pins hold modular sections tight. These features sustain pressure across wide spaces. A long barrier behaves like a single structural entity. Weak joints create catastrophic failure points.
Effective parking lot flood protection navigates tricky geometry. Straight lines rarely exist around entry gates. You need corner pieces. Curved segments and adjustable hinges adapt to uneven curbs. They help enclose entire ramps safely. Standard straight plates leave dangerous gaps at driveway edges. Flexibility ensures comprehensive defense.
Urban runoff carries heavy debris. Fast-moving currents push tree branches toward your gates. Trash bins slam into your barricades. Ensure the system possesses high impact resistance. Reinforced aluminum backbones absorb sudden kinetic shocks. They keep the protective line intact. Brittle plastics shatter under direct impact. You must prioritize materials engineered for dynamic urban environments.
Success relies heavily on environmental conditions. Surface preparation dictates overall sealing success. A modular flood defense cannot magically secure deeply rutted asphalt. Porous gravel causes severe under-seepage. Consider specific mitigation strategies. Installing a flush concrete strip creates a smooth sealing zone. It gives the gaskets a perfect mating surface. This minor civil work dramatically enhances system reliability.
Equipment requires ongoing care. Rubber seals inevitably degrade over time. Ozone and fluctuating temperatures ruin friction gaskets. Mandate annual inspections. Check for dry rot and cracks. Keep units inside UV-resistant storage bags. Proper storage doubles the lifespan of your neoprene components. Neglected equipment fails precisely when you need it most.
Human error ruins the best engineering. Staff must locate and assemble gear under extreme stress. Panic destroys reaction times. Conduct quarterly deployment drills. Develop localized standard operating procedures. Keep instructions visual and straightforward. Label the deployment line clearly on the ground. A well-trained team executes the defense protocol flawlessly during midnight emergencies.
Wipe down all bottom rubber seals with a damp cloth before placing them back into storage.
Store connecting pins in brightly colored, easily accessible pouches attached to the main panels.
Designate specific team roles (e.g., transporter, assembler, inspector) during your quarterly dry runs.
Choosing the right flood barrier requires systematic evaluation. Begin mapping your facility immediately. Calculate exact vulnerabilities before talking to manufacturers. Walk your site during a heavy rainstorm. Observe where water naturally pools and accelerates. This physical assessment provides invaluable deployment data.
Use this simple site assessment checklist to guide your planning:
Measure the exact span widths of every entrance, including curb returns.
Calculate potential water depth based on local historical meteorological data.
Assess ground friction, identifying any severe cracks or potholes requiring patching.
Locate the nearest viable storage closet and measure its internal dimensions.
Focus heavily on vendor transparency. Never accept unsubstantiated performance claims. Demand verifiable third-party stress testing data. Organizations like FM Approvals provide rigorous baseline standards. Ask for actual hydraulic laboratory data. Certifications ensure your equipment performs perfectly during an emergency. Reliable vendors gladly supply detailed engineering reports. They prove their equipment handles intense hydrostatic loads safely.
Modular defense equipment transforms facility management. It transitions water mitigation from an unpredictable crisis response into a manageable operational procedure. Stop relying on exhaustive manual labor and outdated sandbags. Empower your maintenance teams with lightweight, highly engineered tools.
Facility directors must prioritize modern capabilities. Balance immediate deployment speed with high stackability. Ensure your chosen solution aligns perfectly with local storage constraints. Prepare for the rapid onset of urban flooding now. Establish localized standard operating procedures today. Conduct a site assessment this week. Proactive defense saves facilities from catastrophic closures and irreversible infrastructure damage.
A: Most commercial water blocking plates are rated for standing or slow-moving water depths of 20 to 36 inches, relying on the water's weight to anchor the system. They handle significant hydrostatic pressure because the L-shape design converts horizontal pushing force into vertical anchoring weight.
A: Modular systems are strictly temporary and must be removed for vehicle traffic. For drivable options, automated drop-down or pop-up barriers are required. Leaving modular plates in the driveway risks immediate structural damage from heavy vehicle tires.
A: High-quality modular units utilize snap-and-lock or pin-drop mechanisms, requiring zero specialized tools or heavy machinery for deployment. Staff can connect wide spans using only their hands, drastically reducing setup times during critical emergencies.
A: While thick closed-cell neoprene gaskets absorb minor imperfections (like standard concrete finishing), significant dips or potholes will cause under-seepage and must be leveled prior to relying on a modular defense. Smooth surfaces guarantee optimal sealing performance.
