Views: 0 Author: Site Editor Publish Time: 2026-09-16 Origin: Site
Municipalities, developers, and facility managers face a constant operational challenge on every project site. You must balance the need for distinct, branded wayfinding with strict regulatory safety standards. Improperly specified non-standard signage carries heavy risks that go beyond simple aesthetics. These hazards include regulatory fines, failed DOT inspections, accelerated weathering, and severely compromised public safety. A well-planned approach mitigates these liabilities immediately and keeps your project on schedule.
We will guide you through the technical evaluation framework for specifying a custom road sign. We move from baseline compliance and material substrates to advanced solar integrations, decorative hardware, and vendor selection. You will learn exactly how to coordinate streetscapes and private developments without violating federal or local mandates.
Customizing road and street signs requires strict adherence to local and federal guidelines (e.g., MUTCD) regarding reflectivity, color, and typography for regulatory signs, while offering more flexibility for residential, commercial, and private property wayfinding.
Material selection dictates lifespan and structural integrity; choosing the correct aluminum gauge, sign frame, and reflective sheeting grade is the primary driver of overall cost and durability.
Advanced customizations, such as a custom solar traffic sign, introduce new evaluation criteria including battery autonomy, activation triggers, and maintenance schedules.
Partnering with an established traffic sign manufacturer with OEM capabilities ensures scalable production, precise CNC/plasma fabrication, and consistent quality control across large deployments.
Defining the boundary between a regulatory traffic safety sign and a decorative wayfinding marker is your first step. Regulatory markers control vehicle movement and dictate right-of-way. Decorative markers guide pedestrians or identify private communities. You must understand this distinction before approving any design for fabrication.
The Manual on Uniform Traffic Control Devices (MUTCD) dictates strict standards for public roadways. State Departments of Transportation often add their own variations to these federal rules. You cannot alter the core visual elements of regulatory markers. Stop signs, yield signs, and speed limit displays have zero tolerance for color or shape deviation. A stop sign must remain an octagon with a red background and white lettering. Changing its font or background color renders it non-compliant and illegal.
Using non-compliant regulatory markers creates massive liability. If an accident occurs at an intersection with an altered stop sign, the property owner or municipality faces severe legal exposure. Inspectors will flag these deviations during routine audits. You will then have to replace the non-compliant units immediately, doubling your material and labor output. Field crews often see private developers try to match stop signs to their corporate colors. This always results in failed inspections and forced replacements.
You have significant flexibility outside of strict regulatory markers. Customization is legally permissible and highly encouraged in specific zones. These include street name plates, private HOA residential roads, commercial retail campuses, and parking lot directories. You can also customize the decorative post assemblies holding regulatory markers, provided the marker itself remains compliant.
Private property owners can deploy unique shapes, brand colors, and custom typography for internal wayfinding. A corporate campus can use sleek, dark-themed directional markers to match its architecture. An HOA can integrate its community logo onto the street name plates. Always verify local municipal ordinances before fabrication. Some towns enforce aesthetic guidelines even on private commercial lots.
Follow these steps to verify compliance before ordering:
Identify the exact classification of the marker (regulatory, warning, or guide).
Consult MUTCD Section 2A for allowable variations in your specific category.
Submit proposed designs to the local municipal engineer or DOT representative for preliminary review.
Confirm that any custom colors meet the minimum retroreflectivity contrast ratios required for nighttime visibility.
Material specifications determine how well your installation withstands environmental conditions. You must match the substrate to wind load requirements, regional weather patterns, and project lifespan expectations. Cutting corners on the substrate leads to bent panels, peeling reflective sheeting, and premature failure.
Aluminum is the industry standard substrate. It resists rust and provides an excellent surface for reflective sheeting. We specifically look for 5052-H38 aluminum alloy. This alloy offers the perfect balance of tensile strength and workability. Thickness matters immensely. We evaluate aluminum using specific gauge measurements.
Aluminum Gauge | Primary Application | Wind Load Resistance | Mounting Requirement |
|---|---|---|---|
.040 Gauge | Parking lot notices, novelty items, temporary markers. | Low. Bends easily under pressure. | Flush mount to walls or heavy backing. |
.063 Gauge | Standard private roads, commercial parking facilities. | Moderate. Suitable for low-speed areas. | Standard u-channel or square posts. |
.080 Gauge | Public roads, municipal installations, standard highway use. | High. Resists vandalism and severe weather. | Heavy-duty breakaway posts. |
.125 Gauge | High-wind areas, coastal zones, oversized guide panels. | Extreme. Built for hurricane zones. | Dual-post mounts or cantilever arms. |
Thicker aluminum increases rigidity and lifespan but adds weight. You must ensure your mounting hardware can support the heavier .080 or .125 gauge panels during severe weather events. A .125 gauge panel mounted on a weak post will act like a sail and snap the hardware at the base.
Modern fabrication allows for virtually any shape. CNC routing and plasma cutting technologies handle non-standard profiles easily. You can specify unique community logos, historical district crests, or custom directional arrows. These machines cut the aluminum with extreme precision, ensuring uniform shapes across large deployment phases.
Edge treatments are mandatory for safety and aesthetics. We require radius corners on all installations. Sharp, 90-degree corners pose a laceration hazard to pedestrians and installation crews. Proper edge deburring removes metal burrs left by the cutting process. This creates a smooth finish that prevents the reflective sheeting from peeling at the edges over time. Before applying any sheeting, the aluminum must undergo a chemical conversion coating, typically an alodine treatment. This etches the metal and ensures the adhesive bonds permanently.
Bare aluminum backs are standard, but custom finishes elevate the perceived value of the installation. Powder coating the back and edges of the aluminum provides superior corrosion resistance. This is especially important in coastal environments with high air salinity or regions using heavy winter road salts.
Integrating extruded aluminum frames adds structural rigidity and visual weight. A framed street name plate looks substantial and premium compared to a flat panel. Edge trim protects the reflective sheeting from moisture ingress and physical damage. These enhancements are highly popular in upscale residential developments and premium commercial retail centers.
Visibility specifications directly impact driver reaction times. A well-illuminated marker gives drivers more time to process information and adjust their speed. We categorize reflective performance using specific ASTM D4956 grades. Selecting the wrong grade guarantees a failed nighttime inspection.
Reflective sheeting uses microscopic glass beads or micro-prisms to bounce vehicle headlights back to the driver. Choosing the right grade is vital for compliance and safety on all road and street signs.
Engineer Grade (Type I): This material uses enclosed glass beads. It offers basic visibility. It works well for a private driveway or a novelty parking notice. Expect a functional lifespan of 5 to 7 years before reflectivity drops below acceptable levels.
High-Intensity Prismatic (Type IV): This is the modern standard for municipal applications. It uses micro-prismatic technology to bounce back significantly more light at wider angles. It provides excellent nighttime visibility and meets most municipal requirements. Expect a lifespan of 10 years.
Diamond Grade (Type XI): This material delivers the highest retroreflectivity available. It uses full-cube prismatic technology. You must specify Diamond Grade for critical warnings, school zones, and high-speed environments where early detection is mandatory. It lasts 12 years or more.
Typography affects legibility at high speeds. Federal guidelines mandate specific highway fonts like Clearview or Highway Gothic for regulatory and public street name plates. These fonts feature specific letter spacing and stroke widths optimized for quick reading under headlight glare.
For private wayfinding, you can utilize custom typography to match corporate branding. You can integrate custom municipal seals, HOA logos, or corporate crests directly onto the reflective sheeting. We achieve this using advanced digital printing. The manufacturer prints the custom graphics onto the reflective material using specialized traffic inks. They then apply a UV-protective clear overlay. This clear laminate prevents the colored inks from fading under intense sunlight, ensuring the branding remains vibrant for a decade or more. Edge sealing the finished panel prevents water from delaminating the printed layers.

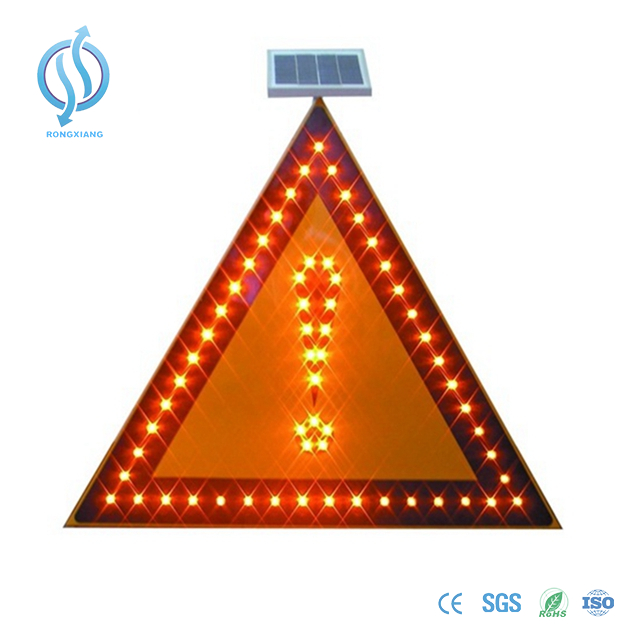

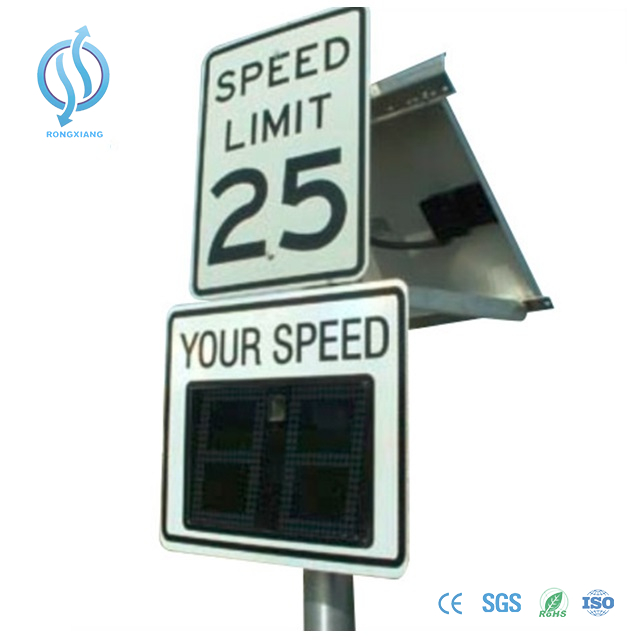

Upgrading static panels to active warning systems drastically improves safety at high-risk intersections. A custom solar traffic sign captures driver attention much faster than a standard reflective panel. These systems are highly effective in areas with a history of driver inattention or frequent pedestrian crossings.
Active systems integrate high-intensity LEDs into the perimeter of the panel. You can customize the placement and color of these LEDs based on the application. Red LEDs surround stop and yield panels. Amber LEDs surround pedestrian crossing and speed limit warnings. You can also specify the flash pattern. Options include a synchronized flash, a wig-wag alternating pattern, or a rapid pulsing sequence designed to break driver hypnosis. MUTCD guidelines typically require a flash rate of 50 to 60 flashes per minute for regulatory compliance.
Solar-powered units require careful sizing based on geographic location. We evaluate solar insolation data to determine the correct solar panel wattage and battery capacity. A unit installed in sunny Arizona requires a smaller panel than one installed in cloudy Washington state. The system must maintain battery autonomy to operate through several consecutive days of heavy cloud cover without dropping voltage.
You must choose between self-contained units and external cabinet systems. Self-contained units house the battery and controller behind the solar panel. They offer a sleek, unobtrusive profile but are harder to service. External cabinet systems mount the battery lower on the post in a NEMA 3R or 4X rated enclosure. They have a larger visual footprint but make routine battery replacements much easier for maintenance crews. We typically specify Lithium Iron Phosphate (LiFePO4) batteries for their superior temperature tolerance and longer lifecycle compared to standard sealed lead-acid (SLA) batteries.
You can specify how and when the LEDs activate. Continuous 24/7 flashing works well for dangerous rural curves. Programmable time clocks are ideal for school zones, activating the flashers only during drop-off and pick-up hours. Push-button activation serves pedestrian crosswalks, triggering the lights only when someone intends to cross. Radar and vehicle detection systems activate the flashers only when a vehicle approaches above a specific speed threshold. This targeted activation conserves battery life and prevents drivers from ignoring a constantly flashing light.
Solar technology introduces new maintenance overhead. Solar batteries typically require replacement every three to five years. You must factor this maintenance schedule into your operational planning. Vandalism is another risk. Solar panels and external cabinets attract tampering. Specify polycarbonate protective shields for the solar panels and tamper-resistant locking mechanisms for the battery cabinets to mitigate these threats.
Mounting hardware secures the installation while contributing to the overall visual environment. You must balance visual appeal with crash safety and maintenance accessibility. A beautiful panel mounted on non-compliant hardware is a massive liability.
Coordinated streetscapes create a unified, premium aesthetic for any district. You can match your custom traffic sign hardware with existing area lighting, architectural elements, and commercial landscaping. If a downtown district uses black fluted light poles, the street name posts should utilize the same black fluted design. This coordination elevates the perceived value of the entire neighborhood and creates a distinct sense of place.
Standard galvanized u-channel posts are functional but lack visual appeal. Decorative hardware transforms a basic installation into an architectural feature.
Signposts: Specify 3-inch or 4-inch fluted, square, or round posts. Fluted posts offer a classic, historical look. Square posts provide a modern, clean aesthetic. Ensure the wall thickness of the post can handle the wind load of the attached panels.
Post Bases: Decorative slip-over bases hide the concrete footing and anchor bolts. They come in various styles, from simple square collars to ornate, tiered cast-aluminum designs.
Top Finials: Finials cap the top of the post. Options include simple flat caps, ball finials, acorn shapes, or custom-cast municipal logos.
Evaluate the materials used for these decorative elements. Cast aluminum is lightweight and rust-proof, making it ideal for most applications. Steel offers higher impact resistance but requires rigorous powder coating to prevent rust. When assembling these components, crews must use anti-seize compounds on all stainless steel bolts to prevent galling.
You have multiple mounting options depending on the location. Cantilever arms extend the panel out over the roadway. Dual-post mounts support large, heavy guide panels. Back-to-back sign brackets allow visibility from both directions on a single post. Decorative frames enclose the panel, adding a finished look.
Safety compliance is non-negotiable on public roads. Regardless of how decorative the hardware is, it must meet federal crash test standards. Breakaway hardware is a critical requirement. If a vehicle strikes the post, the base must shear off or yield, allowing the post to pass over the vehicle rather than penetrating the windshield. Ensure your decorative posts and bases comply with NCHRP Report 350 or the newer MASH (Manual for Assessing Safety Hardware) standards. The concrete footing must be poured flush with the surrounding soil, and the breakaway stub must not protrude more than four inches above the ground line.
Your project's success depends entirely on vendor capabilities. You need a partner who can deliver complex, non-standard signage at scale without sacrificing quality or compliance. Vetting the manufacturer prevents massive delays during the installation phase.
Assess a supplier's capacity to handle both residential and commercial volumes. A local print shop might handle a dozen parking notices, but they cannot manage a phased rollout of 500 coordinated streetscape assemblies. Look for a dedicated traffic sign manufacturer with proven experience in municipal and large-scale commercial deployments. They must understand the nuances of MUTCD compliance and structural wind loads.
Original Equipment Manufacturer (OEM) capabilities are crucial. You want a vendor that performs fabrication in-house. In-house welding, plasma cutting, CNC routing, and digital printing ensure tight quality control. Relying on third-party assembly increases lead times and introduces quality variations. A vendor producing OEM traffic signs can create custom aluminum extrusions, engineer proprietary mounting brackets, and guarantee that all streetscape components fit together perfectly on-site. They also utilize proper slip-sheeting during packaging to ensure the reflective faces are not scratched during transit.
Evaluate the manufacturer's industry certifications. Look for designations like "3M Certified Sign Fabricator." This certification proves the vendor applies reflective sheeting according to strict manufacturer guidelines, ensuring maximum lifespan and performance. They maintain climate-controlled application rooms to prevent dust and humidity from ruining the adhesive bond.
Analyze the warranty terms carefully. A robust warranty should cover reflective sheeting degradation for at least 7 to 10 years. It should cover LED lifespan and solar controller performance for active systems. Structural welds on custom brackets and decorative frames should carry long-term guarantees against failure.
Large municipal, HOA, or campus projects often require phased rollouts. Assess the vendor's supply chain stability. Can they source enough .080 gauge aluminum and Type IV sheeting to complete phase three next year without delays? A qualified manufacturer maintains deep material inventories and provides transparent, reliable lead times for custom fabrication runs.
Customizing road signs is a highly technical process. You must balance aesthetic branding and coordinated streetscapes with rigid safety and compliance standards. Ignoring MUTCD guidelines or specifying incorrect materials leads to rapid degradation and severe legal liability. A methodical approach to substrates, reflectivity, and mounting hardware ensures a safe, durable, and visually appealing deployment.
Buyers must prioritize manufacturers that offer transparent material specifications. You need a partner with proven compliance expertise and robust OEM fabrication capabilities. In-house CNC routing, certified sheeting application, and deep knowledge of breakaway hardware separate reliable vendors from basic print shops.
Take the following steps to advance your signage project:
Audit your current facility or municipal roadways to identify non-compliant or degrading markers.
Consult your local municipal code and MUTCD guidelines to define your exact customization boundaries.
Determine your environmental wind load and visibility requirements to select the correct aluminum gauge and reflective sheeting grade.
Request a detailed technical specification sheet and a comprehensive quote from a certified OEM manufacturer.
A: Standard safety markers strictly follow MUTCD regulations for shape, color, and typography to ensure uniform driver behavior. Custom versions offer flexibility for wayfinding, branding, and private property usage. You can alter colors, add logos, and use unique shapes on custom markers, provided they are not used to regulate public traffic flow.
A: You cannot place logos on regulatory markers like stop or yield signs, as MUTCD strictly prohibits this. However, you can integrate company or HOA logos on street name plates, residential frames, directional wayfinding panels, and private property notices.
A: Yes. While OEM manufacturers focus on commercial and municipal scale, they can produce personalized novelty items. These are typically fabricated using thinner .040 gauge aluminum and basic Engineer Grade sheeting, as they do not need to meet high-speed public roadway compliance standards.
A: The aluminum substrate and LED components typically last 10 to 15 years. The reflective sheeting maintains its performance for 10 to 12 years depending on the grade. The solar batteries require the most maintenance, operating on a standard 3 to 5-year replacement cycle.
A: The industry standard for durability and compliance is .080 gauge aluminum paired with High-Intensity Prismatic (Type IV) reflective sheeting. This combination withstands high wind loads, resists rust, and provides excellent nighttime visibility for municipal and commercial applications.
A: Yes. Reputable OEM manufacturers fabricate products to exact federal MUTCD and state DOT specifications. They ensure full compliance regarding reflectivity and dimensions, even when integrating custom logos on permitted panels or utilizing decorative 4-inch breakaway posts.
A: Use Engineer Grade (Type I) for low-speed, private, or novelty applications. Specify High-Intensity Prismatic (Type IV) for standard municipal and commercial street applications. Mandate Diamond Grade (Type XI) for critical safety warnings, school zones, and high-speed environments.
